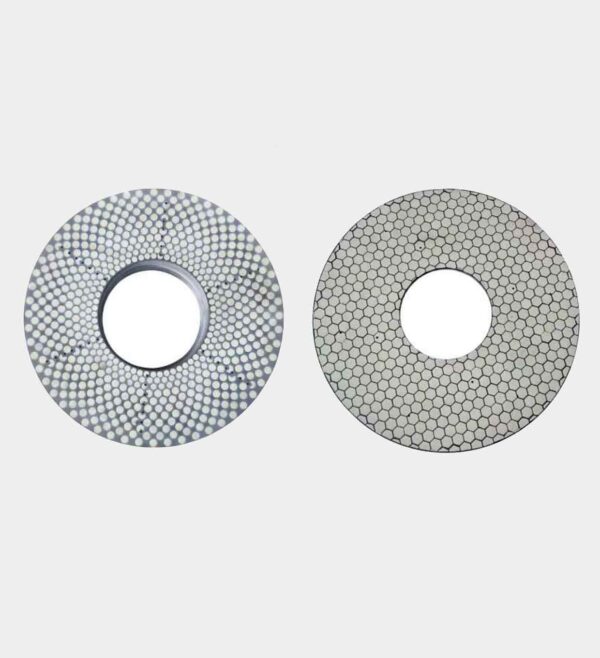

Ceramic Diamond (CBN) Grinding Disc

Features:
1. High grinding efficiency
2. High wear resistance
3. High grinding force, low grinding temperature
4. High workpiece precision, good surface quality

Applications: Suitable for grinding high-hardness materials such as cemented carbide, tungsten carbide, PCBN, and sapphire, as well as non-metallic materials such as steel, aluminum and their alloys, ceramics, and glass. Diameter: 600mm-1500mm
Aperture: 200mm-500mm
Basic Thickness: 50mm-100mm
Grit: 100 mesh-1500 mesh
Diamond Working Layer Thickness: 5mm-7mm
Grinding Disc Accuracy, Flatness, Parallelism ≤0.02mm
Workpiece Accuracy, Roughness 0.1µm-1.2µm
Flatness 0.001mm-0.004mm, Parallelism ≤0.002mm, Height Equalization ≤0.002mm
